Accessor class for additional Tof info (standalone reconstruction) More...
#include <Containers/Tof.h>

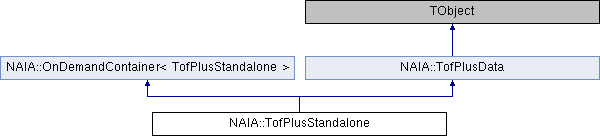

Inheritance diagram for NAIA::TofPlusStandalone:
Public Member Functions | |
| TofPlusStandalone () | |
 Public Member Functions inherited from NAIA::OnDemandContainer< TofPlusStandalone > | |
| OnDemandContainer ()=default | |
| void | LoadEvent () |
Wrapper to call GetEntry on the underlying TBranch. More... | |
| void | SetTreeEntry (unsigned long long treeEntry) |
| Set the TTree entry number. More... | |
| void | Branch (TTree *tree) |
| Create the TBranch associated with this container. More... | |
| void | MirrorBranch (TTree *targetTree, const TofPlusStandalone *sourceContainer) |
| Create a TBranch associated with this container mirroring from an existing container. More... | |
| void | SetBranchAddress (TTree *tree) |
| Setup reading of the data container. More... | |
| void | DisableIO () const |
| Disables I/O for this container. It won't be written on disk and trying to read it will cause an exception. More... | |
| TofPlusStandalone * | operator-> () |
| Access operator. Use this to access container data More... | |
| Public Member Functions inherited from NAIA::TofPlusData | |
| void | Clear () |
| Clear container content. More... | |
| void | Dump () const |
| Dump on screen container content. More... | |
Static Public Attributes | |
| static const std::string | BranchName = "TofPlusDataSt" |
Additional Inherited Members | |
| Public Attributes inherited from NAIA::TofPlusData | |
| float | Chi2Coo {0} |
| Tof clusters spatial reconstruction normalized chi-square. The tof cluster residuals are computed w.r.t. the tracker track or, for the standalone Tof, w.r.t. a linear fit of the Tof cluster coordinates along all Tof layers. More... | |
| float | Chi2Time {0} |
| Tof clusters temporal reconstruction normalized chi-square. (Good luck finding out how this is computed...) More... | |
| short | NTrkClusters {0} |
| Total number of clusters matching Tracker track. More... | |
| short | NBetaClusters {0} |
| Total number of clusters used for beta estimation. More... | |
| short | NChargeClusters {0} |
| Total number of clusters used for charge estimation. More... | |
| float | ChargeLikelihoodEst {0} |
| Likelihood estimation of the event discrete charge. More... | |
| float | ChargeLikelihoodProb {0} |
| Likelihood probability of the event discrete charge estimation. More... | |
| TofBetaVariable< short > | BetaPattern |
| Tof layer pattern used for the beta reconstruction (for each beta type). See Tof::BetaType for list of types. More... | |
| std::vector< bool > | LayerGoodPathl |
| Pathlength check for each tof layer. False if the track crosses a paddle edge, or if this is the standalone reconstruction. More... | |
| LayerVariable< float > | LayerCharge |
| Charge estimation for each tof layer. More... | |
| LayerVariable< float > | LayerEdep |
| Energy deposition in each tof layer. More... | |
| LayerVariable< TofClusterTypeVariable< unsigned int > > | NClusters |
| Number of tof clusters on each layer both on-time or off-time (far from trigger). See Tof::BetaClusterType for list of cluster types. More... | |
| LayerVariable< TofClusterTypeVariable< float > > | AverageDTime |
| Average delta-t for tof clusters on each layer. See Tof::BetaClusterType for list of cluster types. More... | |
| LayerVariable< TofClusterTypeVariable< float > > | AverageEdep |
| Average cluster energy deposition on each tof layer. See Tof::BetaClusterType for list of cluster types. More... | |
Detailed Description
Accessor class for additional Tof info (standalone reconstruction)
Wrapper implementing read-on-demand behavior for Tof data.
Constructor & Destructor Documentation
◆ TofPlusStandalone()
Member Data Documentation
◆ BranchName
|
static |
The documentation for this class was generated from the following files:
